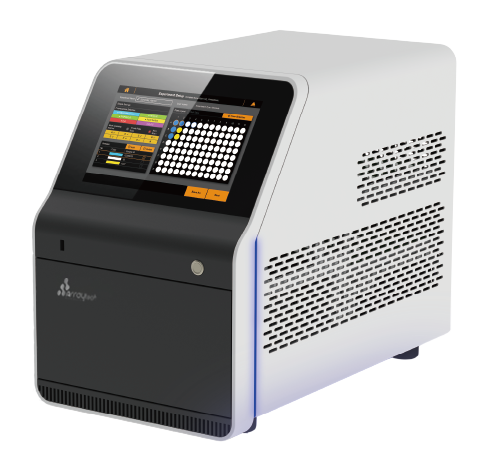

Real time PCR arraytech appearance specifications:
Weight: 27 kg
Dimensions: Width 320 mm X Length 525 mm X Height 420 mm
Real time PCR Arraytech technical specifications:
High-power LED Real Time PCR Life full spectrum with high-sensitivity Hamamatsu photomultiplier tube top scan, to achieve higher sensitivity and accuracy.
High-precision temperature control ensures the block temperature resolution within 0.1 ℃ and the temperature uniformity of 0.1 ℃. The gradient temperature control range is 30-100 ℃ and the maximum temperature difference is 40 degrees.
Automatic sample plate output, 96-well high-power, can be connected to an automated workstation.
Multiplex capability up to 6 colors
Ability to read all colors and wavelengths
Has 6 color channels
The Arraytech Real Time PCR device designed by a German professional team, is designed in accordance with ergonomic features, meets user performance needs, and has a sense of technology overall.
Ability to read color channels of the Arraytech Real Time PCR device:
Channel 1: FAM/SYBR Green I
Channel 2: JOE/HEX/TET/VIC
Channel 3: NED/TAMRA/Cy3
Channel 4: ROX/Texas Red
Channel 5: Cy5
Channel 6: Cy5.5
Ability to read color channels of the Arraytech Real Time PCR device:
μL 5-100
